Acrel DJSF1352-RN Suitable For PV Charging Pile /Din Rail/ White

รายละเอียดสินค้า

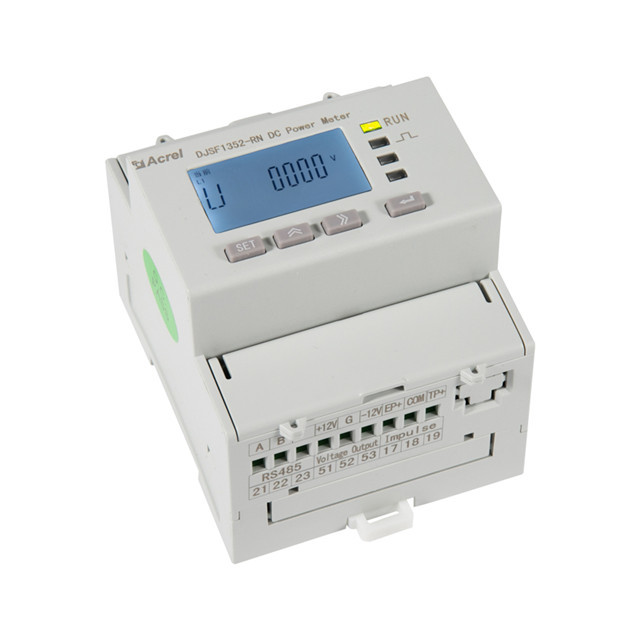

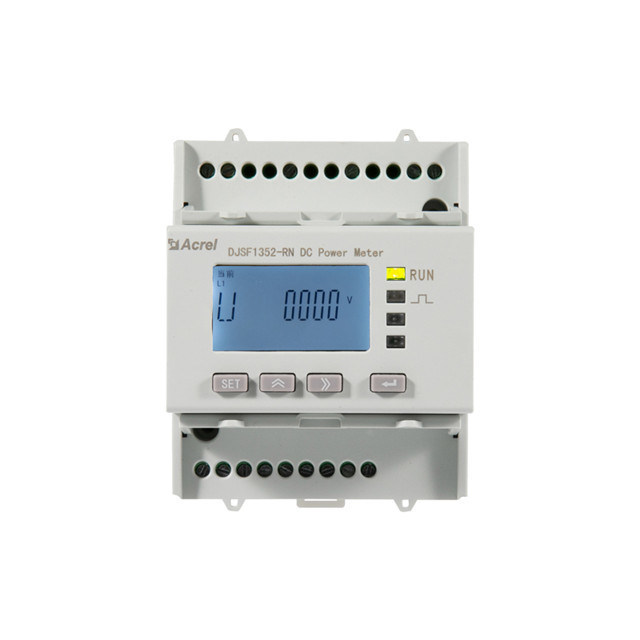

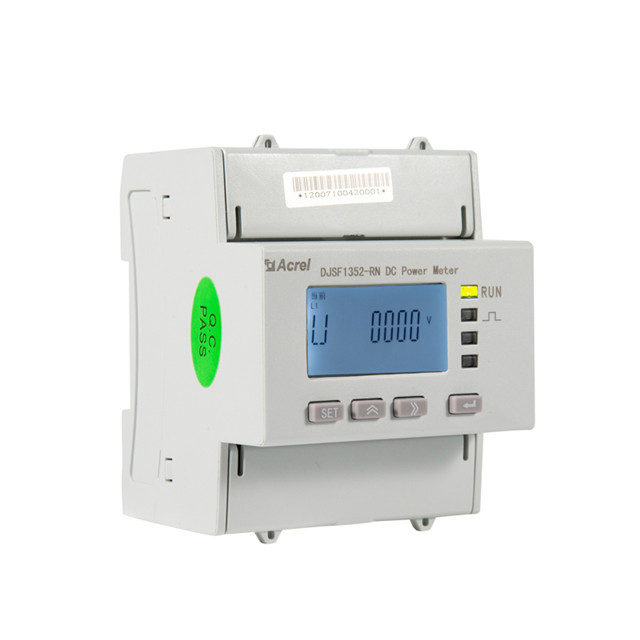

DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system

Basic Specification

Features

LCD Dispaly

Front Pannel

Nerwork

Installation

FAQ

Q:DJSF1352-RN Installation?

A:DJSF1352-RN use 35mm guide rail which is convenient and quick to install.

Q:Which signal input does DJSF1352-RN support?

A:DJSF1352-RN voltage supports 1000V input, current supports shunt (0-75mV), Hall sensor (0-20mA, 4-20mA, 0-5V) access.
